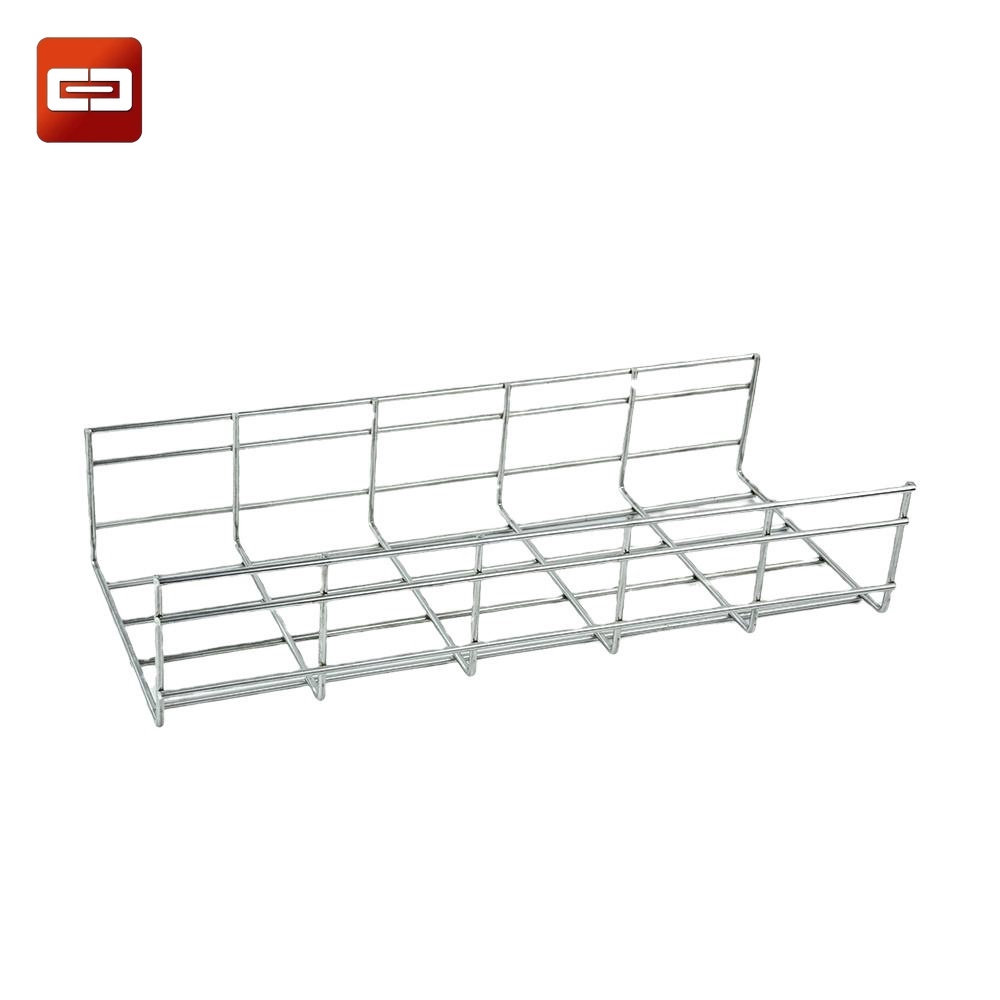

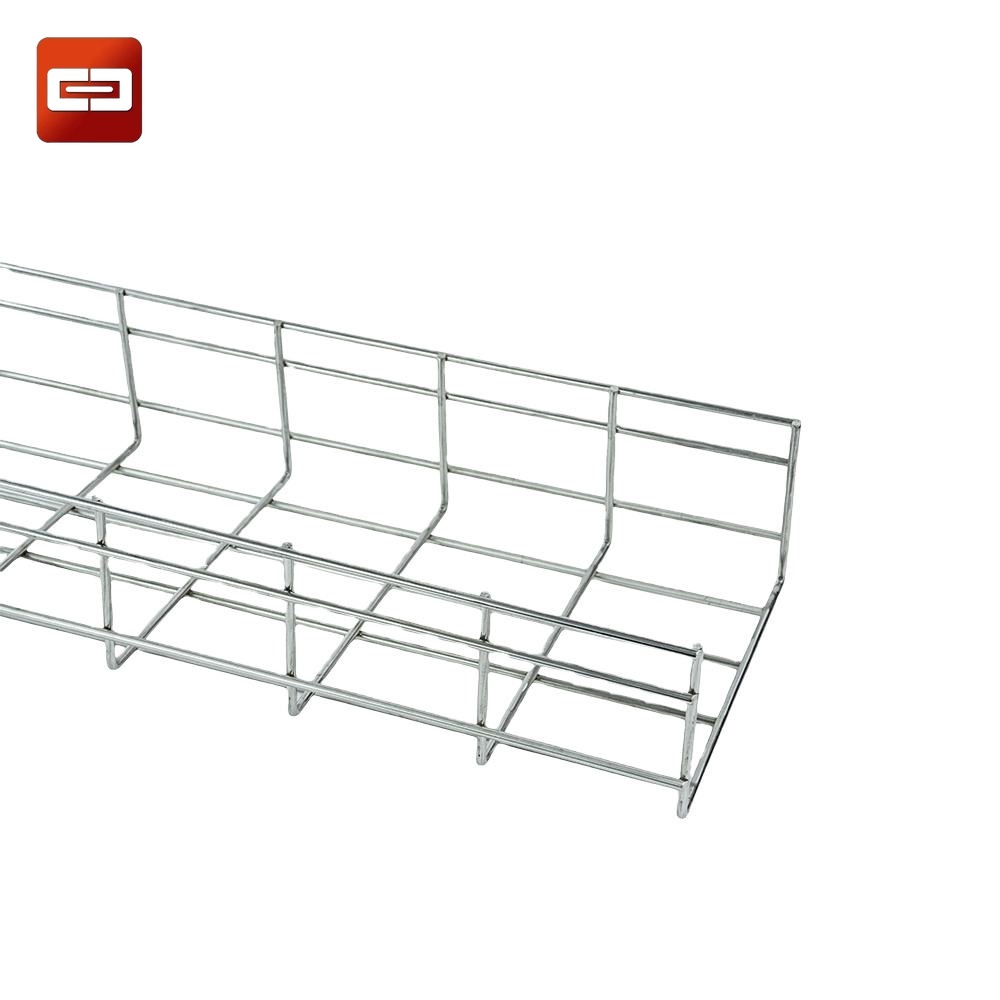

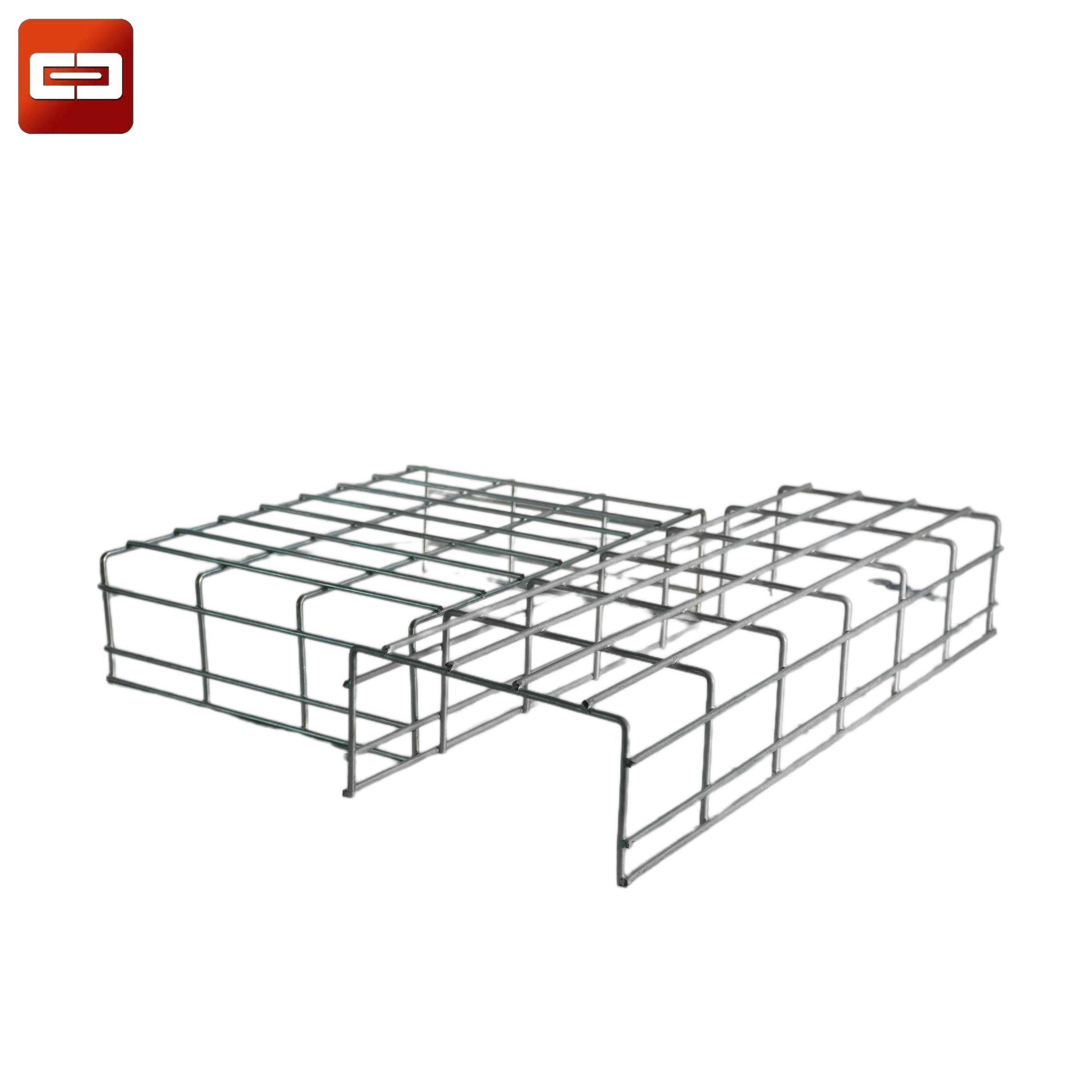

Easy Install Wire Mesh Cable Tray for Wall & Ceiling Installation

The wire mesh cable tray is a specially designed and manufactured system that utilizes a wire basket with a diameter of 4-6mm to route and support small-diameter cables, particularly data communication cables. The mesh structure of the tray allows for proper airflow, keeping the cables ventilated and cool, which helps prevent heat damage. The mesh is also smooth to ensure that the cables are not cut or abraded during the installation process. Wire mesh cable trays can be cut or bent to accommodate various configurations like curves, slopes, and tees, making them suitable for complex cable runs. These trays can be mounted on walls, overhead, or under floors, making them versatile for whole-facility installations.

Product Description

item	value
Application	Cable Laying, Cable Support, Cable Wiring, Construction, Industrial, Managing Cables, Network
Material	Galvanized/hot-dip galvanized/stainless steel
Max. Working Load	100 kg, 120 kg, 129 kg, 150 kg, 200 kg, 216 kg, 250 kg
Side Rail Height	10MM, 12mm, 15 mm, 25 mm, 75mm, 100mm, 200 mm
Type	Wire Mesh
Model Number	Wire mesh cable tray
Cable Capacity	8 pcs
Surface Finishing	Hot-Dip Galvanized, Passivated, Pre-Galvanized, Coated With Anti-Corrosion Paint, Anodized
Wire diameter	4mm/5mm, or customized
Length	1/2/3/4/5/6m, custonized

Main Parameter of wire mesh cable tray

Material	Surface Finishing	Thickness of coating	Application of environment
Q235 steel	Electro Zinc Plating	≥12µm	Indoor
Q235 steel	Hot dip Galvanized	>60µm	Indoor, Outdoor
Q235 steel	Powder Coating	>60µm	Indoor
SS304	Acid washing	N/A	Indoor, Outdoor
SS316	Acid washing	N/A	Indoor, Outdoor, High Corrosion occasions
SS316L	Acid washing	N/A	Indoor, Outdoor, High Corrosion occasions

Dimension Range of wire mesh cable tray

Dimension	Range
Width	50-1000mm
Height	25-200mm
Length	300-6000mm
Diameter of steel wire	3mm,4mm,5mm,6mm

Product Show

Available accessories

Successful Projects

Application

Factory Display

Inventory display

With a stable and guaranteed supply, we are fully committed to ensuring the smooth progress of the project construction.

Equipment Showcase

The equipment has a sturdy structure, strong load-bearing capacity, and neat wiring. All sizes of equipment are available for immediate viewing, and custom sizes can also be made to order.
